The KUBE-8050/8051 is a compact Box PC ideal for space-critical applications. This powerful embedded hardware platform is designed with Intel® Atom N270 Processor which provides with excellent performance enabled by 45nm Process Technology. The system is supported with Intel® 945GSE / ICH7-M chipset, and DDR2 DIMM up to 2GB. Featured are a 2.5” SATA HDD, Mini PCIe slot, dual Gigabit Ethernet, USB 2.0, VGA, COM, LPT and PS/2 KB/MS. The KUBE-8050/8051 provides high performance, reliability for harsh environments, compact size, noiseless operation and is highly suited to a wide range of industrial applications such as Kiosk, ATM, Gaming, Transportation, Entertainment, Surveillance, and Thin Servers. Wall and desktop mounting supported.
- Intel® Atom N270 processor support
- Intel® 945GSE + ICH7-M chipset,
- 1x DDR2 400/533 DIMM Socket, up to 2GB
- 2x GbE, 1x 2.5” HDD, COMs, VGA, USB, LPT, HD Audio
- Optional WiFiantenna
- Heavy-dutyHeavy-duty steel chassis with fanless design
Construction
Power LED
HDD Activity LED
Rear I/O
2x RJ-45, GbE
4x USB 2.0
1x VGA, DB-15 connector
1x LPT, DB-25 connector
1x Mic-in & 1x Line-out (HD audio)
1x PS/2 Keyboard connector
1x PS/2 Mouse connector
10x COMs with 5V/12V power selection, 10x RS-232 (KUBE-8050)
1x PCI slot (KUBE-8051)
1x DB-9 female connector, 4x Digital I/Os (KUBE-8050))
Drive Bays
- Aluminum front panel, heavy-duty steel chassis
- Mini-ITX Embedded SBC, Intel® Atom™ N270, Intel® 945GSE + ICH7-M
- 1x DDR2 400/533 DIMM Socket, up to 2GB

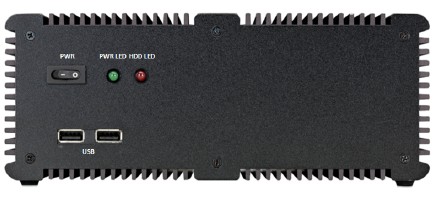

- Front I/O
Power LED
HDD Activity LED
4x USB 2.0
1x VGA, DB-15 connector
1x LPT, DB-25 connector
1x Mic-in & 1x Line-out (HD audio)
1x PS/2 Keyboard connector
1x PS/2 Mouse connector
10x COMs with 5V/12V power selection, 10x RS-232 (KUBE-8050)
1x PCI slot (KUBE-8051)
1x DB-9 female connector, 4x Digital I/Os (KUBE-8050))
Drive Bays
- 1x 2.5" Hard Drive Bay (SATA)
- 1x Mini PCIe slot
- 1x PCI slot (KUBE-8051)
- IEEE 802.11b/g, antenna connector (optional)
- DC 12V input
- Fanless
- Operating: 0°C to 60°C, 0%-90%, non-condensing
- (with wide range temperature HDD and SSD)
- Storage: -10°C to 80°C, 0%-90%, non-condensing
- 188 x 82 x 276 mm (WxHxD)
- 2.4 kg
- Desktop, Wall-mount
- CE, FCC Class A
